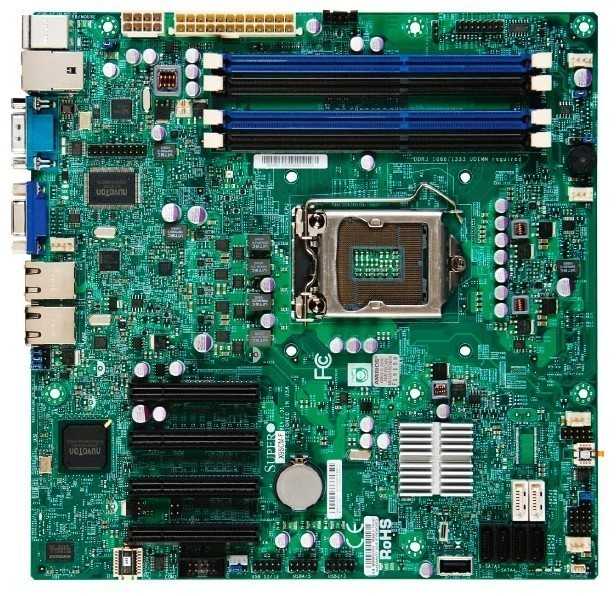

Отзывы о Материнская плата Supermicro X9SCM-F

6.6/10

Неплохо


Рейтинг: Неплохо 9 отзывов

515 место из 1113 в категории Материнские платы
9


Краткие характеристики:

  • Intel C204
  • 1xLGA1155
  • 4xDDR3 DIMM
  • графика
  • LAN: 2x1000 Мбит/с
  • microATX



9 отзывов пользователей o Supermicro X9SCM-F

Пользовались Supermicro X9SCM-F?
Поделитесь своим опытом и помогите другим сделать правильный выбор

Profile no image

Скроменый эксперт

12.10.2013

10/10

Оценка пользователя

Великолепно

  • + - 2 гигабитных порта + выделенный для ipmi,
    - поддержка десктопных процессоров core i3 3xxx и Xeon e3 v2 после обновления BIOS,
    - холодная,
    - в комплекте есть все утилиты для управления/контроля
  • - - Свой видеочип слабоват, трудно найти относительно резвое видео (слоты закрыты сзади),
    - при работе с отдельным видеоадаптером, а не встроенным, недоступен KVM через родные утилиты IPMI
    - если понадобится звук - только для PCIE или USB
Неплохая плата для сервачков начального левела, роутеров, но в качестве рабочей станции чтобы ее использовать - нужны некоторые доп. вложения.
Отзыв предоставлен
Profile no image

Иванов Илья

25.07.2013

10/10

Оценка пользователя

Великолепно

  • + два гигабитных сетевых порта, отдельный IPMI, поддержка Xeon
  • - нет
Задача, для которой купил эту модель: недорогой сервер с поддержкой Hyper-V. Стоимость "плата+процессор+оперативка" лишь немного дороже, чем просто хорошие комплектующие для дома. Для меня это было важным параметром.

IPMI работает превосходно (кто не в курсе: можно удаленно включить/выключить, доступ к дисплею (типа radmin) c вирт. клавиатурой, ну кучу еще всего, большинство мне пока не нужно было. Опять же отмечу два гигабитных сетевых интерфейса. Плата...
Отзыв предоставлен
Profile no image

Скроменый эксперт

17.03.2013

10/10

Оценка пользователя

Великолепно

As of 3/15/13 when I received my motherboard it came with bios version 2.0b, so it did support the Ivy bridge xeons (version 2)The IPMI dedicated NIC alone is an amazing feature, it allows you to remotely shut down, turn on, reboot, etc, and also monitor all sensors on the motherboard. The best part of it though? The virtual KVM part. You'll never need to have a console again with this feature, just log into the IPMI NIC's IP address and you can access the computer remotely as though you had it right there in front of you, including bios settings, startup key presses, etc.Uses unbuffered ECC memory for the xeon family, which is great as it's practically the same price as non-ecc memory now. Note that buffered memory is not supported.mini-atx form factor, not a big deal for me but some people might enjoy what this opens up in terms of case usage.Not the most amazing motherboard for virtualization, one of the nics doesn't work with esxi unless you put in driver support for it, and for me it didn't work simply because I wanted to use the intel onboard flexraid option instead of shelling out for a raid card. Probably isn't a big deal for many people but I wanted to make sure it was known by those looking to buy the board. Not really a knock on the board as I'm not aware of any (atleast around this price) that come with built in raid card solutions.My total computer:6x WD 2TB Reds (2 for raid 1 for the OS and hyper-v virtual machines, 4 for raid 5 storage)Intel 1230v22x Kingston KVR16E11/8 (1600mhz 8 gig ECC unbuffered memory modules)Note that this motherboard is a little long in the tooth now, as of my writing this it's been out almost 2 years. Doesn't really mean much for motherboards it seems, as the only thing it's really missing is USB3 support, which isn't a huge deal for a server motherboard.Feel free to leave comments asking questions!
Отзыв предоставлен
Profile no image

Скроменый эксперт

07.04.2013

10/10

Оценка пользователя

Великолепно

This is a great motherboard. I finally finished my home server build... slowly but surely. As of April 2013, it comes with the latest bios that will support Ivy Bridge processors. The IPMI is cool but I didn't find much use of it after I got everything running. If I were to buy another, I would more than likely get the model without the IPMI.This will NOT recognize non-ecc ram. I was bummed out. I was hoping to use old parts. It will only recognize ECC unbuffered ram. It has 4 slots that can accommodate up to 32GB total. I went with the Kingston 2x4GB ram KVR1333D3E9SK2 (http://www.amazon.com/Kingston-Technology-ValueRAM-KVR1333D3E9SK2-8G/dp/B002T3JN0Y).Opening the box I was greeted with a checklist and a "inspected by" document. I think it's great. It makes me feel that Supermicro has a high quality control. I have been running my new server set up for a few days now. It's running an i3 2100, Adaptec 6805 raid card, 8x2TB in a RAID6 (adaptec raid), 3x3TB in a RAID0 (motherboard raid) to back up the RAID6. The OS is Windows Server 2012. The server chassis is a Rosewill RSV-L4500.
Отзыв предоставлен
Profile no image

Скроменый эксперт

21.03.2013

10/10

Оценка пользователя

Великолепно

I have this in a home server paired with a Xeon E3-1230 V2. The one I received already had the latest firmware, so no worries there. IPMI feature is very handy. The machine is on 24/7 and it's rock solid.
Отзыв предоставлен
Profile no image

Скроменый эксперт

14.12.2012

10/10

Оценка пользователя

Великолепно

Supermicro has earned itself a solid reputation for churning out solid Server motherboards. This particular model is especially well known for it's trouble-free setup and operation in light duty environments. I put a server together with 16GB of Kingston ECC RAM, and it's been working without a complaint so far. Setup was smooth, and I haven't run across any problems whatsoever. I think it may take a max of 32GB RAM with the latest BIOS.Predictable, reliable. That's all I ask of a server-grade part.
Отзыв предоставлен
Profile no image

Скроменый эксперт

12.01.2013

10/10

Оценка пользователя

Великолепно

Small and easy to set up. As always it is best to use supermicro mobos in supermicro cases - the connectors are so much easier that way. IPMI works great for remote management.
Отзыв предоставлен
Profile no image

Скроменый эксперт

14.10.2012

10/10

Оценка пользователя

Великолепно

Bought this for my Windows Server 2012 Essentials server build. Easy to install and seems to be running without a hiccup. No configuration needed out of the box and has plenty of features that future-prrof it. A great value too.
Отзыв предоставлен
Profile no image

Скроменый эксперт

10.07.2012

10/10

Оценка пользователя

Великолепно

Great board, but if you want to use xeon v2 and firmware v1# you will need another 1155 chip to flash to v2 firmware - that's what the 4 beeps mean.
Отзыв предоставлен
Показаны отзывы 1-9 из 9.

Лучшие цены сегодня на Supermicro X9SCM-F



График изменения цены Supermicro X9SCM-F

Обзоры и руководства на Supermicro X9SCM-F

Характеристи Supermicro X9SCM-F

Процессор
Производитель процессора : Intel
Сокет : LGA1155
Поддерживаемые процессоры : Intel Core i3/Xeon E3-1200/Pentium/Celeron
Количество сокетов : есть
Чипсет
Производитель чипсета : Intel
Чипсет : Intel C204
Память
Количество слотов оперативной памяти : 4
Тип памяти : DDR3 DIMM, поддержка ECC
Режим работы оперативной памяти : двухканальный
Тип памяти : DDR3 DIMM, поддержка ECC
Максимальная частота памяти : 1333 МГц
Слоты расширения
Слоты накопителей подробно : 2 x SATA 6G, 4 x SATA 3G
Аудио/видео
Название видеопроцессора : Matrox G200
Сеть
Скорость Ethernet : 2x1000 Мбит/с
Чипсет Ethernet : Intel 82579LM/82574L
Беспроводные интерфейсы : без Wi-Fi
Дополнительные параметры
Поддержка RAID : SATA RAID 0, 1, 5, 10
Поддержка RAID : есть
Область применения : для сервера
Форм-фактор материнской платы : microATX
Тип системы охлаждения : пассивное
Задняя панель
Разъемы на задней панели : COM-порт, VGA
Внутренние разъемы
Внутренние слоты и разъемы : поддержка PCI-E 2.0, разъем питания 24-pin
Дополнительная информация : 2 слота PCI-E 8x работают в режиме 4x, 1 IPMI Lan порт (Realtek RTL8201N)

Информация о характеристиках носит справочный характер.
